LTE GPS Tracker with Voice & SOS
A personal safety tracker that fits LTE cellular, GNSS, Bluetooth LE, two way voice, and an SOS button into a 52 × 38 mm board, with motion and fall detection, a multi rail power system for long battery life, and careful RF and grounding work to make three radios and a mixed signal audio path coexist in almost no space. Delivered as the full hardware cycle in Altium Designer, from system architecture and schematic through multilayer PCB layout, component selection, and the complete fabrication and assembly package.
Year
07.2024
Scope
Schematic Design, Hardware Design, RF Design, HDI Board, Altium Designer, DFM
Timeline
3 Months
From rough block diagram to a fully working tracker just 52 × 38 mm cellular, GPS, Bluetooth, and two-way voice on a single board.

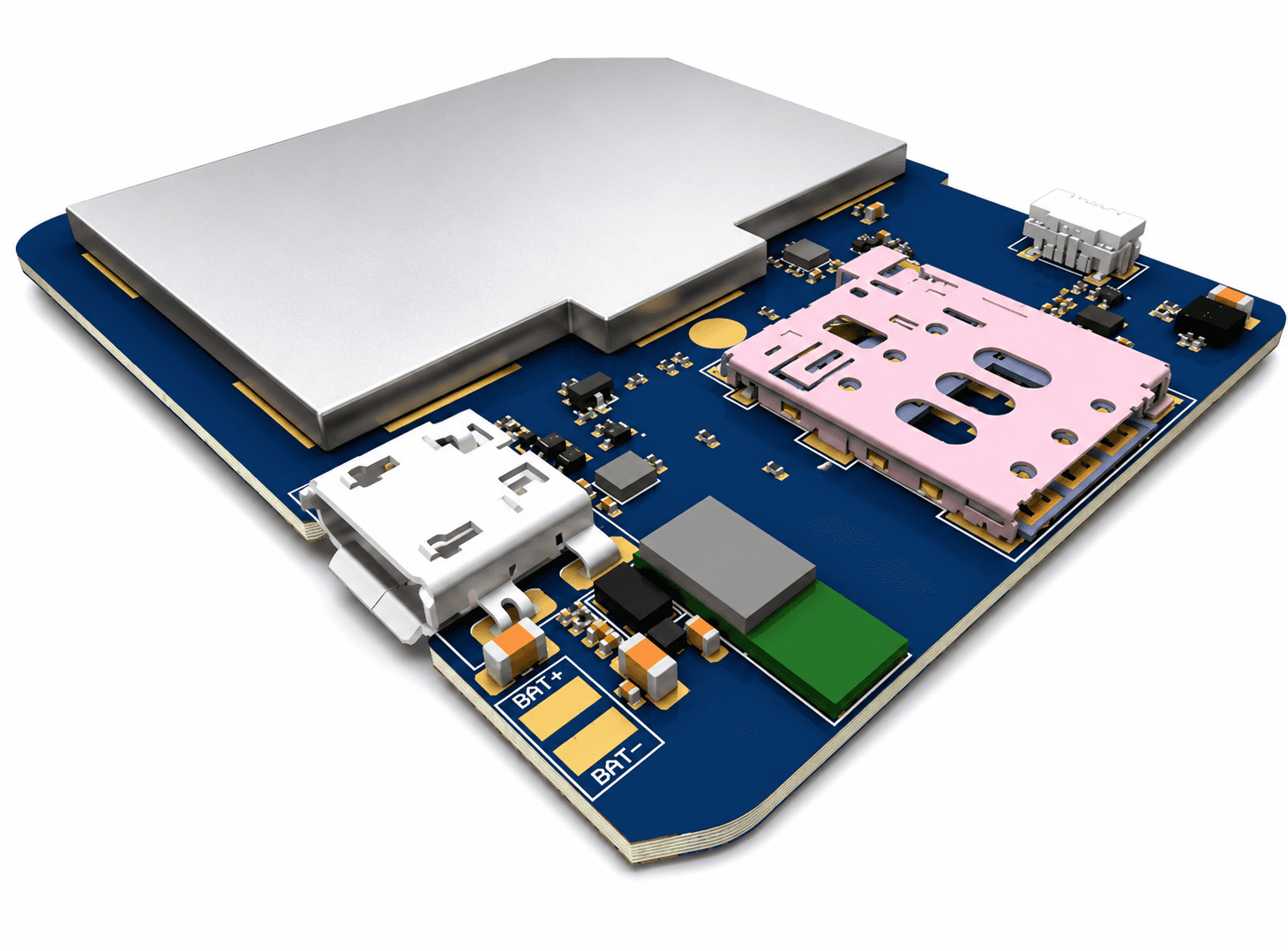

A complete hardware design for an ultra-compact personal safety tracker, integrating LTE cellular, GNSS positioning, Bluetooth LE, two-way voice, and emergency SOS onto a board measuring just 52 × 38 mm taken from system architecture through schematic, multilayer PCB layout, and full fabrication and assembly documentation.
